Fixture Geometry Inspection
We validate the geometry, reference points and critical dimensions of welding and assembly fixtures.
Precision 3D Measurement and Geometric Validation
Using portable coordinate measurement systems, we perform precision measurement, geometric validation and quality control on fixtures, parts and robotic cells.
Geometric Validation
Precision Measurement in Production
Using portable 3D measurement systems, we verify the geometric accuracy of production parts, welding fixtures, mechanical systems and robotic cells. By comparing field data with CAD models, we identify deviations early in manufacturing, assembly and commissioning.
Measurement Capabilities
Our Measurement and Validation Capabilities
Robot TCP Validation
We measure robot Tool Center Point values to verify robot motion and application accuracy.

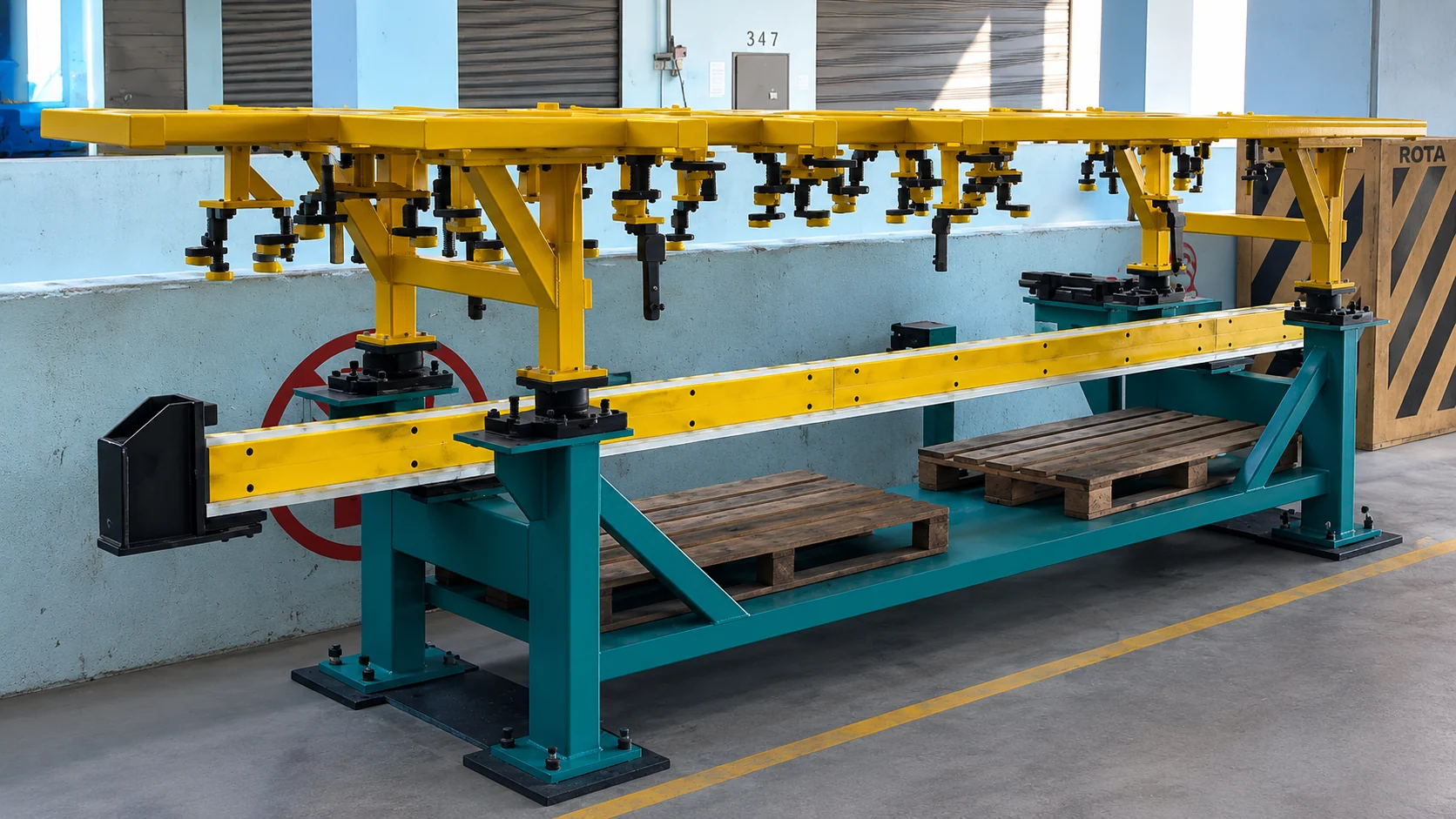

Welding Fixture Tolerance Measurement
We identify dimensional deviations and out-of-tolerance areas in welding fixtures.
Reference Point Measurement
We precisely capture datum and reference-point coordinates to support manufacturing and assembly processes.
CAD-to-Part Comparison
We compare manufactured parts with digital CAD models to analyze surface and geometric deviations.
GD&T Analysis
We evaluate part and system compliance against geometric dimensioning and tolerancing criteria.
On-Site Measurement

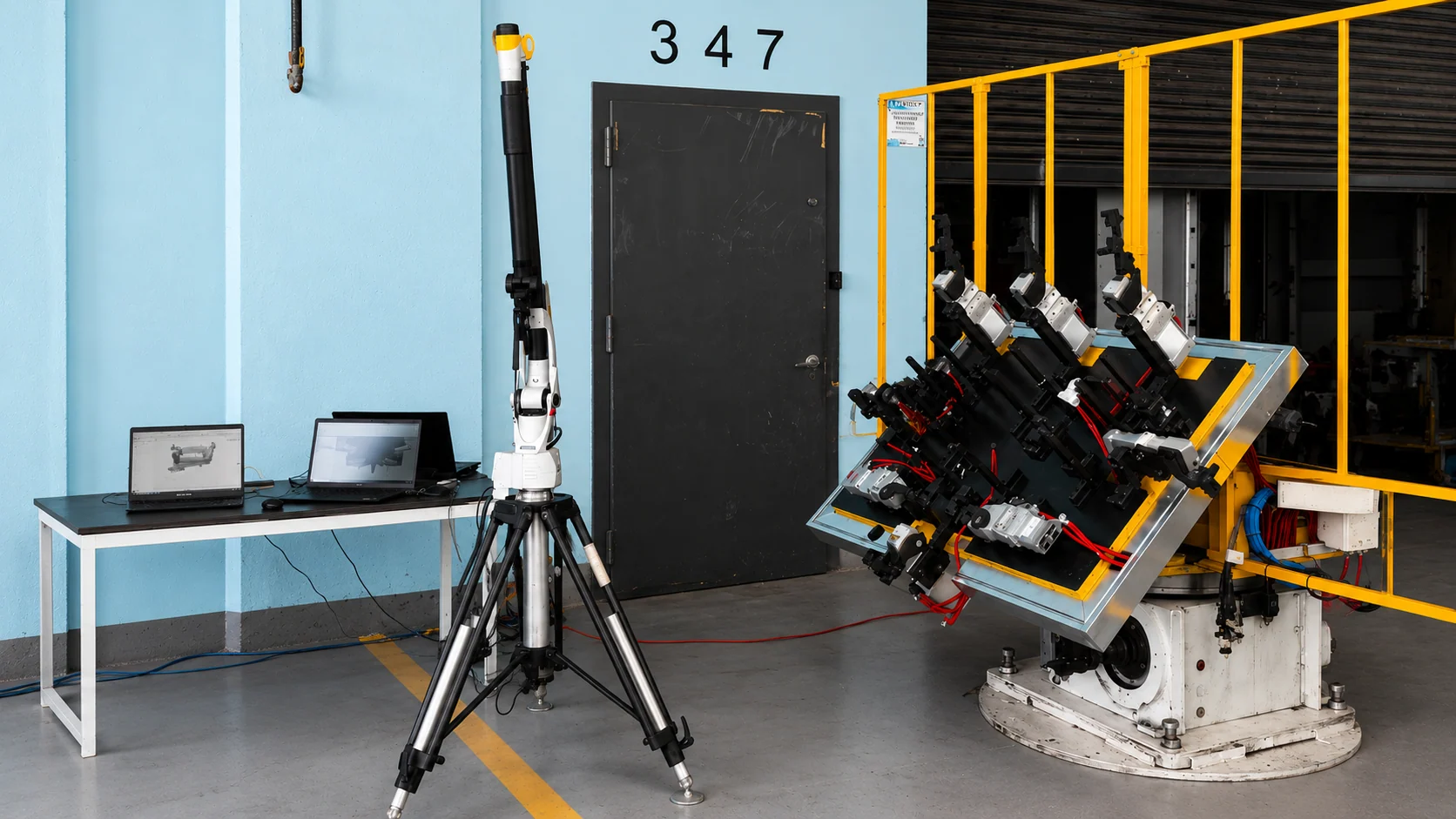

Portable 3D Measurement Systems
Portable coordinate measuring arms and laser scanning technologies allow large parts, production lines, fixtures and robotic systems to be measured directly on site, delivering fast, reliable data without transporting parts to a metrology laboratory.
Four-Stage Approach
Measurement Process
- 01
Measurement Plan Preparation
Critical surfaces, reference points and tolerances are defined.
- 02
On-Site Data Collection
The part, fixture or system is scanned with a portable measuring device.
- 03
Digital Comparison
Captured data is compared with the CAD model and technical tolerances.
- 04
Reporting and Validation
Deviations are analyzed and a technical measurement report is prepared.
Industry Applications
Applications
- 01Welding and assembly fixtures
- 02Robotic production cells
- 03Automotive production parts
- 04Machine and equipment components
- 05Prototype and custom-made parts
- 06Production line geometry inspections
- 07Quality control and reverse engineering
